Trinteract

License: CERN-OHL-S License: MIT License: CC BY-SA 4.0

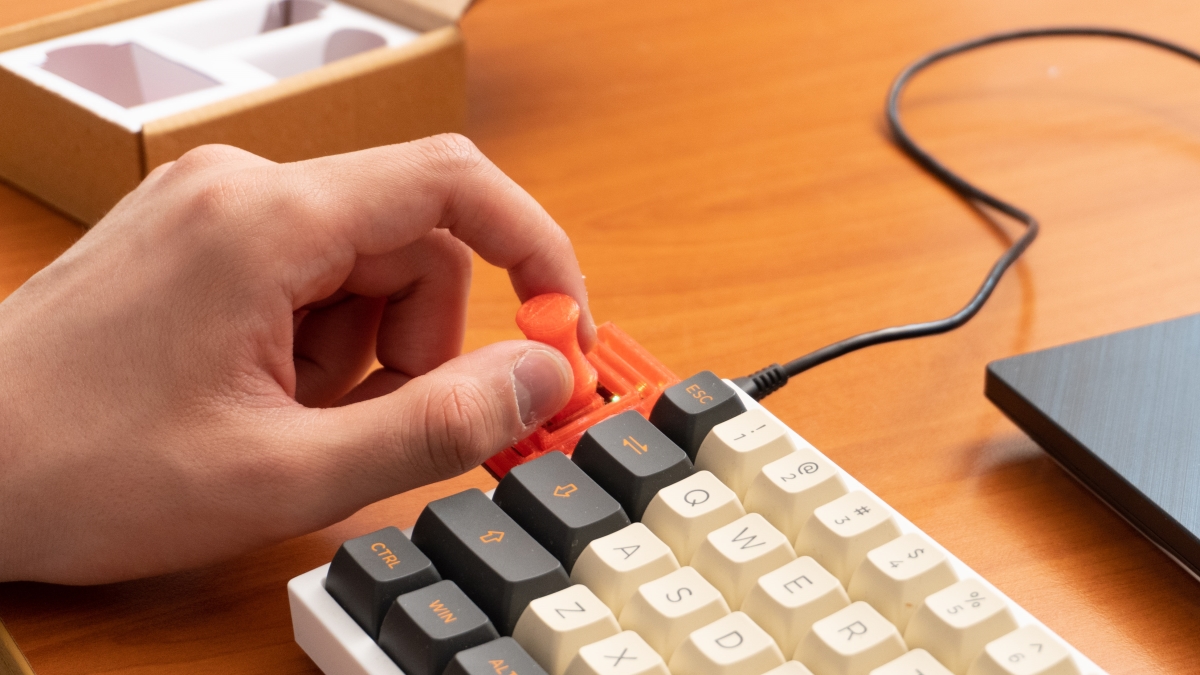

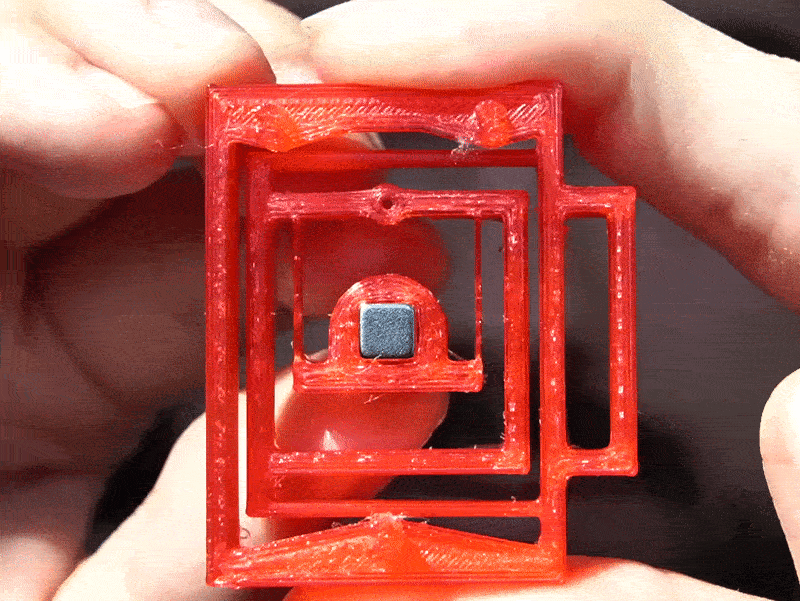

This repository contains all the files and documentation for Trinteract, An open-source Arduino-compatible 3DOF Human Interface Device (HID). In other words a joystick that's capable of moving in all 3 Dimensions. Trinteract uses a 3D magnetometer and a Neodymium magnet to detect motion in 3D space. Visit the DIY guide

Watch the Demo here

File structure:

  • Software contains the arduino code and necessary drivers
  • PCB contains the KiCAD PCB files and gerber files for manufacturing
  • docs contains the source code for the documentation website build with Sphinx
  • CAD contains all fusion360 CAD files and print ready .stl files

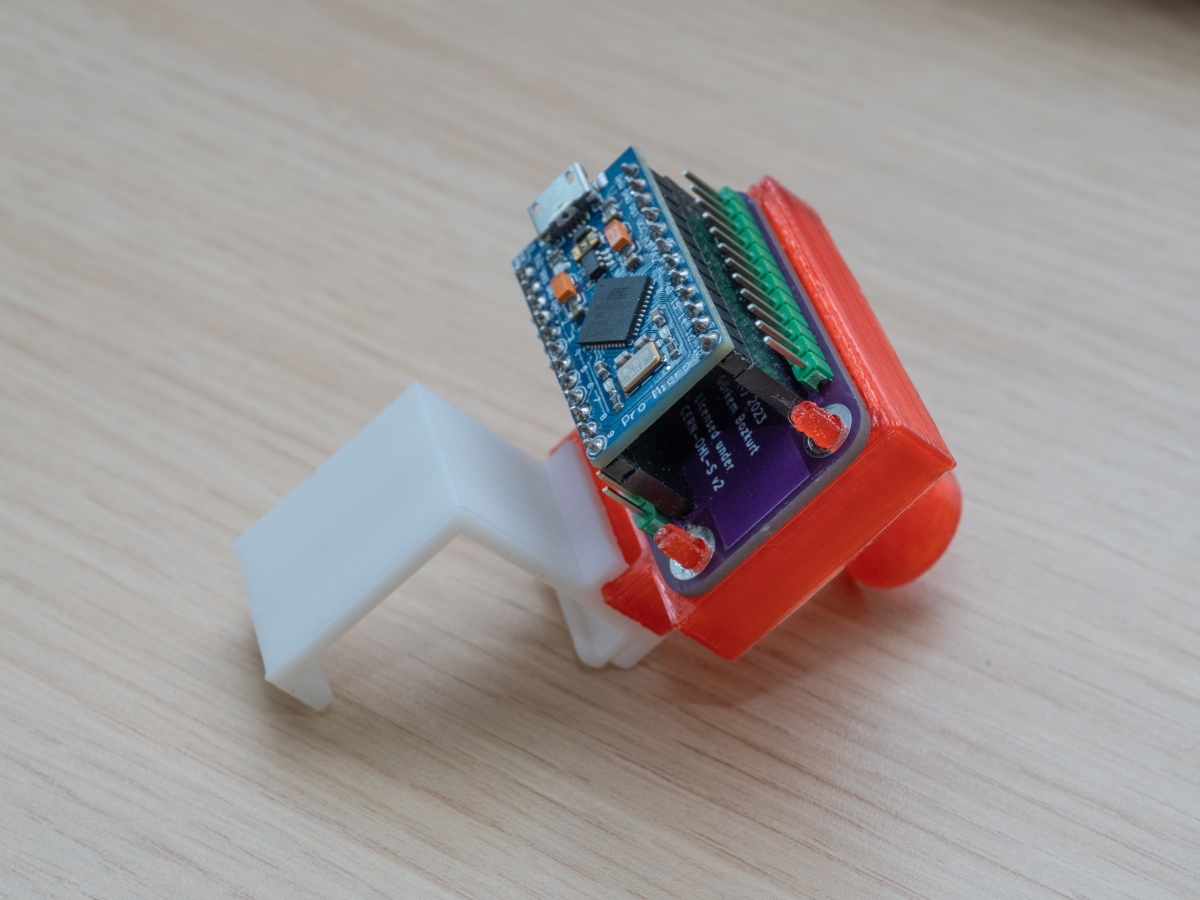

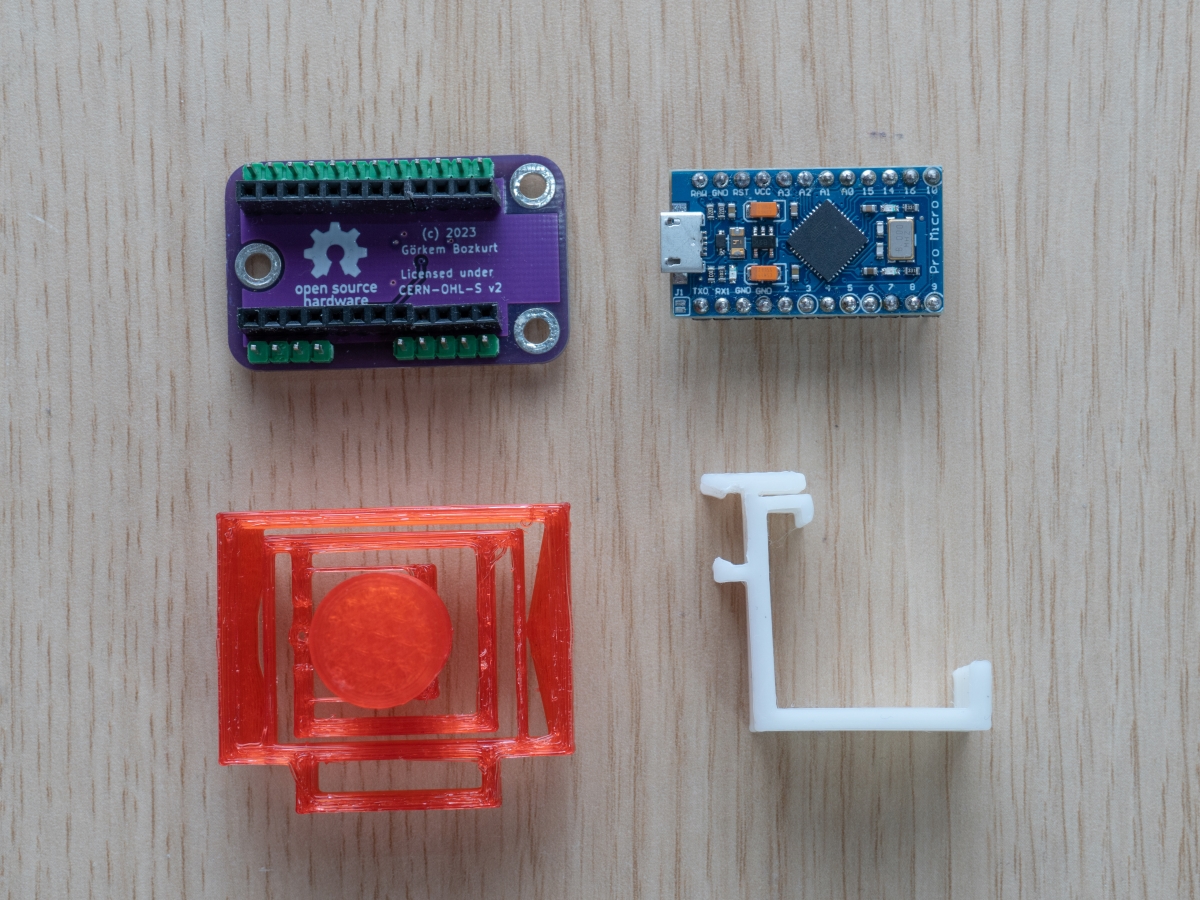

Before Assembly Assembled

[OSHW] EE00001 | Certified open source hardware
